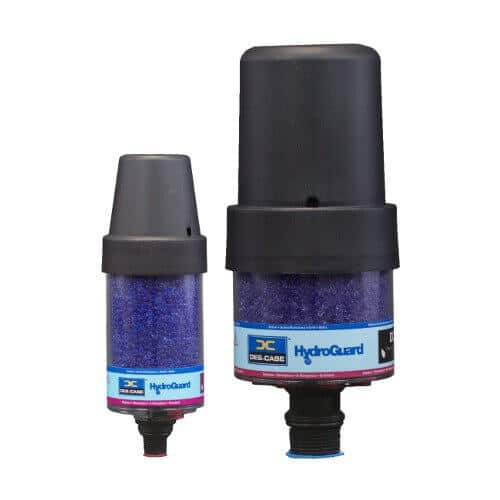

Des-Case HydroGuard Breathers

Buy in cases of six for a 5% discount per unit.

We also carry Des-Case Filter Elements.

$98.58$887.45

SKU: DC-HG-X Categories: ,

Designed for steady-state operations and high-humidity environments, Des-Case HydroGuard breathers feature expansion chambers and internal check valves that create a nearly sealed system. This maximizes the use of air that has already been dried and filtered, and increases the life of each breather by 400–800%. Efficiency is 3 micron absolute (ß3≥200), temperature range is -20˚F–200˚F, and connections are 3/8″ to 1″ multi-fit with adapters available from ¾” to 1 ¾”.

ModelHeightDiameterConnectionSilica GelMax. Flow
DC-HG-17.22 in /
183 mm
2.52 in /
64 mm
3/8" Multi-Fit
(NPT, BSPP, BSPT)
0.28 lb /
0.125 kg
1.41 cfm
@ 1 psid
DC-HG-89.75 in /
247.66 mm
4.1 in /
104.1 mm
3/8" Multi-Fit
(NPT, BSPP, BSPT)
0.65 lb /
0.24 kg
2.5 cfm
@ 1 psid

Data Sheet The Challenges of High-Humidity Environments

Additional information

Weight N/A
Dimensions N/A
Brand

Des-case
